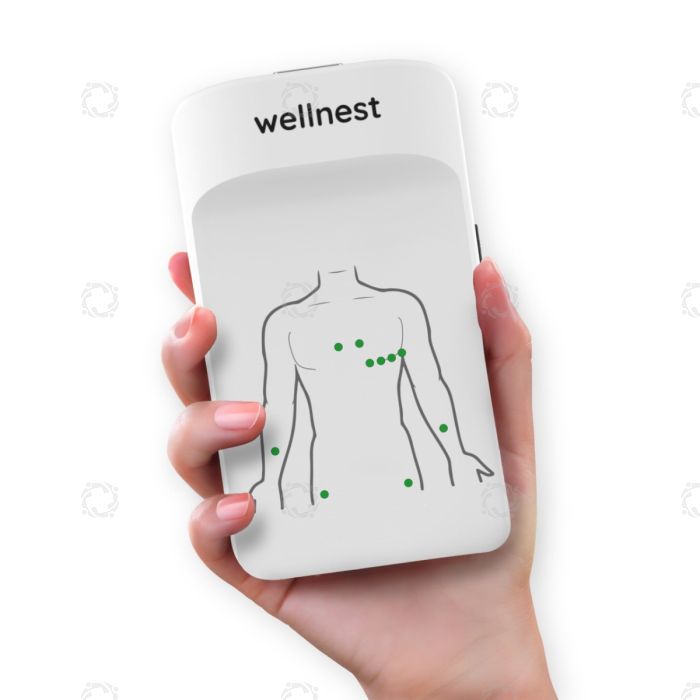

Wellnest 12L Standard ECG System

₹45,599.00
MRP: ₹45,599.00
Seller : Wellnest Health Monitoring PVT LTD
Brand : WELLNEST
Manufacturer : Wellnest Health Monitoring Private Limited
In stock
Features
  • - 12 Lead Simultaneous
  • - CE-certified
  • - Portable
  • - Bluetooth/App-based ECG Machine with Accessories
  • - Conventional Cables
  • - Unconventional
  • - Powerful Experience
Description
  • - Wellnest 12L Standard ECG System
  • - Wellnest 12L is a Bluetooth-enabled electrocardiograph machine that captures medical-grade heart data.
  • - With a responsive 500 Hz refresh rate and the latest Bluetooth 5.0 technology, the ECG capturing is simultaneous, smooth, and incredibly accurate.
  • - Actionable data is organized and triaged based on customized practice parameters for efficiency.
  • - 12L is Wellnest's first of many med-tech solutions aimed at reducing the cardiovascular disease burden by enabling all care providers to provide heart disease detection capabilities without any prior training.

Benefits:

  • - Accurate: CE-certified, CDSCO-registered 12-Lead simultaneous machine clinically equivalent to gold-standard ECG machines
  • - Affordable: Up to 4x more cost-effective compared to lesser equipped contemporaries, with the lowest estimated lifetime cost of ownership in the industry
  • - Accessible: 24x7 access to expert doctors for reporting and guidance with a promised turnaround time of under 20 minutes
  • - Flexible: Well-defined, hassle-free workflow with complete control over how ECG is reported - by self, by a colleague, or by Wellnest
  • - Convenient: Easy-to-use device & app with seamless communication between stakeholders and integration of all relevant information into a shareable report
  • - Secure Cloud Archive: Encrypted channels used to store and access patient profiles and corresponding medical history
  • - Universal: Enable anyone with minimal training to offer medical-grade ECG services with the support of an LED feedback mechanism on the device and an optional ECG Belt.

Key Feature:

  • - 12-channel portable ECG device
  • - Compatible with ios, android, and desktop
  • - One size fits all ECG belt with prefixed leads
  • - ECG recording in 10 secs
  • - Automated AI interpretation and optional 24x7 doctor reporting available.
  • - Unlimited cloud storage and updated patient database
  • - Compatible with any printer
  • - Long-lasting lithium polymer battery
  • - Standard, right, and posterior ECG recording
  • - Quick and instant access to your patient's medical history
  • - Single PCB device
  • - Bluetooth connectivity

Technical Specs for Bluetooth ECG device:

ECG AcquisitionSimultaneous 12 lead acquisition (standard)
Frequency Response0.01~250Hz
Time Constant>3 sec
Input Impedance>50M Ohms
Input CIR Current≤ 0.1μA
Patient InputFully floating and isolated, defibrillation protected
Patient Leak Current<10μA
Sensitivity (Amplitude)10 mm/mV
Recording Speed (Time reference)25 mm/s
CMRR>110dB
A to D conversion12 bit
Sampling frequency500 samples per sec./channel
FiltersLine frequency, baseline, and muscle filters
Noise Level<15μVp-p
Accessories ECG cable-10 Lead IEC, Standard accessories as required for machine
Power Requirement

Rechargeable lithium battery, 3.7 V/4000mAh

Backup: 1 Month/30 days
Battery Recharge: 8 Hours

Packaging:

  • - The Wellnest 12L Standard Variant includes: 1x Wellnest 12L ECG Machine
  • - 1x 10-Wire/12-Channel ECG Cables (Banana Type)
  • - 1x Set of Chest Bulbs
  • - 1x Set of Clamps
  • - 1x Charging Cable
  • - 1x User Manual
  • - 1x Patient Registration Standee
Availability:In stock
Features
  • - 12 Lead Simultaneous
  • - CE-certified
  • - Portable
  • - Bluetooth/App-based ECG Machine with Accessories
  • - Conventional Cables
  • - Unconventional
  • - Powerful Experience
Description
  • - Wellnest 12L Standard ECG System
  • - Wellnest 12L is a Bluetooth-enabled electrocardiograph machine that captures medical-grade heart data.
  • - With a responsive 500 Hz refresh rate and the latest Bluetooth 5.0 technology, the ECG capturing is simultaneous, smooth, and incredibly accurate.
  • - Actionable data is organized and triaged based on customized practice parameters for efficiency.
  • - 12L is Wellnest's first of many med-tech solutions aimed at reducing the cardiovascular disease burden by enabling all care providers to provide heart disease detection capabilities without any prior training.

Benefits:

  • - Accurate: CE-certified, CDSCO-registered 12-Lead simultaneous machine clinically equivalent to gold-standard ECG machines
  • - Affordable: Up to 4x more cost-effective compared to lesser equipped contemporaries, with the lowest estimated lifetime cost of ownership in the industry
  • - Accessible: 24x7 access to expert doctors for reporting and guidance with a promised turnaround time of under 20 minutes
  • - Flexible: Well-defined, hassle-free workflow with complete control over how ECG is reported - by self, by a colleague, or by Wellnest
  • - Convenient: Easy-to-use device & app with seamless communication between stakeholders and integration of all relevant information into a shareable report
  • - Secure Cloud Archive: Encrypted channels used to store and access patient profiles and corresponding medical history
  • - Universal: Enable anyone with minimal training to offer medical-grade ECG services with the support of an LED feedback mechanism on the device and an optional ECG Belt.

Key Feature:

  • - 12-channel portable ECG device
  • - Compatible with ios, android, and desktop
  • - One size fits all ECG belt with prefixed leads
  • - ECG recording in 10 secs
  • - Automated AI interpretation and optional 24x7 doctor reporting available.
  • - Unlimited cloud storage and updated patient database
  • - Compatible with any printer
  • - Long-lasting lithium polymer battery
  • - Standard, right, and posterior ECG recording
  • - Quick and instant access to your patient's medical history
  • - Single PCB device
  • - Bluetooth connectivity

Technical Specs for Bluetooth ECG device:

ECG AcquisitionSimultaneous 12 lead acquisition (standard)
Frequency Response0.01~250Hz
Time Constant>3 sec
Input Impedance>50M Ohms
Input CIR Current≤ 0.1μA
Patient InputFully floating and isolated, defibrillation protected
Patient Leak Current<10μA
Sensitivity (Amplitude)10 mm/mV
Recording Speed (Time reference)25 mm/s
CMRR>110dB
A to D conversion12 bit
Sampling frequency500 samples per sec./channel
FiltersLine frequency, baseline, and muscle filters
Noise Level<15μVp-p
Accessories ECG cable-10 Lead IEC, Standard accessories as required for machine
Power Requirement

Rechargeable lithium battery, 3.7 V/4000mAh

Backup: 1 Month/30 days
Battery Recharge: 8 Hours

Packaging:

  • - The Wellnest 12L Standard Variant includes: 1x Wellnest 12L ECG Machine
  • - 1x 10-Wire/12-Channel ECG Cables (Banana Type)
  • - 1x Set of Chest Bulbs
  • - 1x Set of Clamps
  • - 1x Charging Cable
  • - 1x User Manual
  • - 1x Patient Registration Standee
Features
  • - 12 Lead Simultaneous
  • - CE-certified
  • - Portable
  • - Bluetooth/App-based ECG Machine with Accessories
  • - Conventional Cables
  • - Unconventional
  • - Powerful Experience
Description
  • - Wellnest 12L Standard ECG System
  • - Wellnest 12L is a Bluetooth-enabled electrocardiograph machine that captures medical-grade heart data.
  • - With a responsive 500 Hz refresh rate and the latest Bluetooth 5.0 technology, the ECG capturing is simultaneous, smooth, and incredibly accurate.
  • - Actionable data is organized and triaged based on customized practice parameters for efficiency.
  • - 12L is Wellnest's first of many med-tech solutions aimed at reducing the cardiovascular disease burden by enabling all care providers to provide heart disease detection capabilities without any prior training.

Benefits:

  • - Accurate: CE-certified, CDSCO-registered 12-Lead simultaneous machine clinically equivalent to gold-standard ECG machines
  • - Affordable: Up to 4x more cost-effective compared to lesser equipped contemporaries, with the lowest estimated lifetime cost of ownership in the industry
  • - Accessible: 24x7 access to expert doctors for reporting and guidance with a promised turnaround time of under 20 minutes
  • - Flexible: Well-defined, hassle-free workflow with complete control over how ECG is reported - by self, by a colleague, or by Wellnest
  • - Convenient: Easy-to-use device & app with seamless communication between stakeholders and integration of all relevant information into a shareable report
  • - Secure Cloud Archive: Encrypted channels used to store and access patient profiles and corresponding medical history
  • - Universal: Enable anyone with minimal training to offer medical-grade ECG services with the support of an LED feedback mechanism on the device and an optional ECG Belt.

Key Feature:

  • - 12-channel portable ECG device
  • - Compatible with ios, android, and desktop
  • - One size fits all ECG belt with prefixed leads
  • - ECG recording in 10 secs
  • - Automated AI interpretation and optional 24x7 doctor reporting available.
  • - Unlimited cloud storage and updated patient database
  • - Compatible with any printer
  • - Long-lasting lithium polymer battery
  • - Standard, right, and posterior ECG recording
  • - Quick and instant access to your patient's medical history
  • - Single PCB device
  • - Bluetooth connectivity

Technical Specs for Bluetooth ECG device:

ECG AcquisitionSimultaneous 12 lead acquisition (standard)
Frequency Response0.01~250Hz
Time Constant>3 sec
Input Impedance>50M Ohms
Input CIR Current≤ 0.1μA
Patient InputFully floating and isolated, defibrillation protected
Patient Leak Current<10μA
Sensitivity (Amplitude)10 mm/mV
Recording Speed (Time reference)25 mm/s
CMRR>110dB
A to D conversion12 bit
Sampling frequency500 samples per sec./channel
FiltersLine frequency, baseline, and muscle filters
Noise Level<15μVp-p
Accessories ECG cable-10 Lead IEC, Standard accessories as required for machine
Power Requirement

Rechargeable lithium battery, 3.7 V/4000mAh

Backup: 1 Month/30 days
Battery Recharge: 8 Hours

Packaging:

  • - The Wellnest 12L Standard Variant includes: 1x Wellnest 12L ECG Machine
  • - 1x 10-Wire/12-Channel ECG Cables (Banana Type)
  • - 1x Set of Chest Bulbs
  • - 1x Set of Clamps
  • - 1x Charging Cable
  • - 1x User Manual
  • - 1x Patient Registration Standee
Additional Information
SKU WLN-STD2
Country of Manufacture India
Return/Buy Back policy N/A
Warranty 1 Year
HSN Code 90181100
Unit of Measure Each
Package Dimension (LxBxH in cms) 26.9x23.8x9
Manufacturer Wellnest Health Monitoring Private Limited
