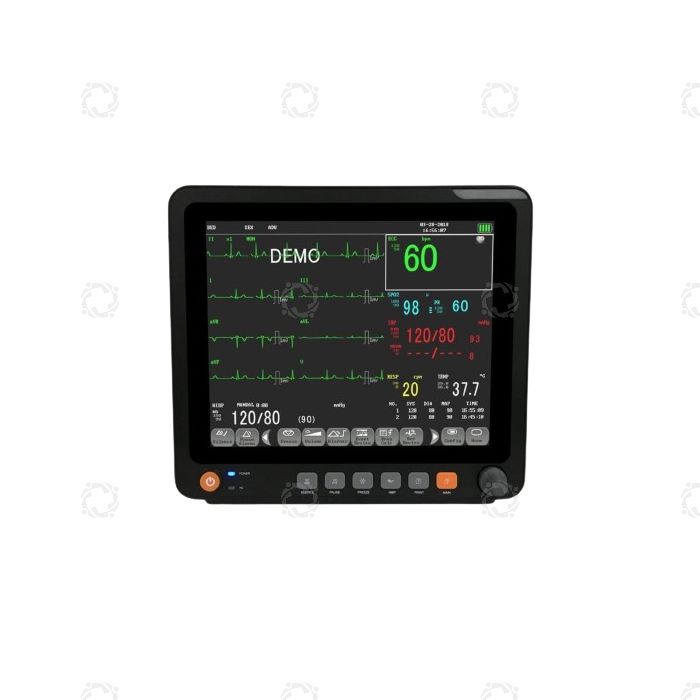

VD Bio Medisystems (VD-9000T) Cardiac Patient Monitor With Touch Screen

Specifications:

• Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
• ECG Heart rate (HR)
• ECG waveform
• Arrhythmia and ST-segment analysis
• RESP Respiration rate(RR)
• Respiration waveform
• SpO2 Oxygen saturation(SpO2)
• Plethysmogram(PLETH) waveform
• Pulse rate(PR)
• Bar graph
• NIBP Systolic pressure (SYS), Diastolic pressure(DIA), Mean pressure (MEAN)
• TEMP T1, T2, TD
• IBP(optional) CH1: SYS, DIA, MAP
• CH2: SYS, DIA, MAP
• IBP waveform
• CO2 EtCO2 Optional
• InsCO2:Inspired Minimum CO2
• AwRR: Air Way Respiration
• It has abundant functions, such as audible and visual alarms, trend data storage and output, NIBP measurement, alarm event marking, and drug concentration calculation etc.

ECG

• Lead mode: 3-lead or 5-lead
• Lead selection: I, II, III, aVR, aVL, aVF, V
• Waveform: 5-lead, dual-channel
• 3-lead, single-channel
• Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV

HR:

• Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s
• Measurement and alarm range: 15~350 bpm
• Accuracy: ±1% or ±1 bpm, whichever is greater
• Alarm accuracy: ± 2 bpm
• Resolution: 1 bpm
• ST-segment monitoring:
• Measurement and alarm range: -2.0 mV ~ +2.0 mV
• Accuracy: -0.8 mV~+0.8 mV ±0.04 mV or ±10%, whichever is greater
• Other range: unspecified
• Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
• PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
• Pacemaker: yes

RESP

• Method: R-F(RA-LL) Impedance
• Respiration rate:
• Measurement and alarm range: 0~150 rpm
• Resolution: 1 rpm
• Measurement accuracy: ±2 rpm
• Alarm accuracy: ±3 rpm
• Apnea alarm: 10~40s
• Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

NIBP

• Method: Oscillometry
• Mode: Manual/AUTO/STAT
• Measurement interval inAUTO  mode :    1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
• Measurement period in STAT mode: 5 minutes
• Measurement and alarm range: 10 ~ 270 mmHg Resolution: 1 mmHg
• Cuff pressure accuracy: ±3 mmHg
• Measurement accuracy:
• Maximal mean deviation: +5 mmHg
• Maximal standard deviation: 8 mmHg
• Over-pressure protection
• Adult mode: 297+3 mmHg
• Pediatric mode: 240+3 mmHg
• Neonatal mode: 147+3 mmHg

SpO2

• Measurement and alarm range: 0
• Resolution: 1>%
• Measurement accuracy: 70%-100%: +2%;
• 0%-69%: unspecified

PR

• Measurement and alarm range: 30~250 bpm
• Measurement accuracy: ±2 bpm or ±2%, whichever is greater

TEMP

• Channel: dual-channel
• Measurement and alarm range: 0 ~ 50°C
• Resolution: 0.1 °C
• Accuracy: ±0.1 °C

EtCO2

• Method: Sidestream or Mainstream
• Measuring Range: 0~150mmHg

Resolution

• 0-69 mmHg, 0.1 mmHg
• 70-150 mmHg, 0.25 mmHg

Accuracy

• 0-40 mm Hg ±2 mm Hg
• 41-70 mm Hg +5>%
• 71~100 mm Hg ±8>%
• 101-150 mm Hg ±10>%
• AwRR Range: 2~150 rpm
• AWRR Accuracy: ±1BPM Apnea Alarm: Yes

Accessories

• Adult fingertip SpO2 probe (5-pin)
• Adult NIBP cuff
• NIBP extension tube
• ECG lead cable
• ECG electrode
• Temperature probe
• Power cord
• User Manual
