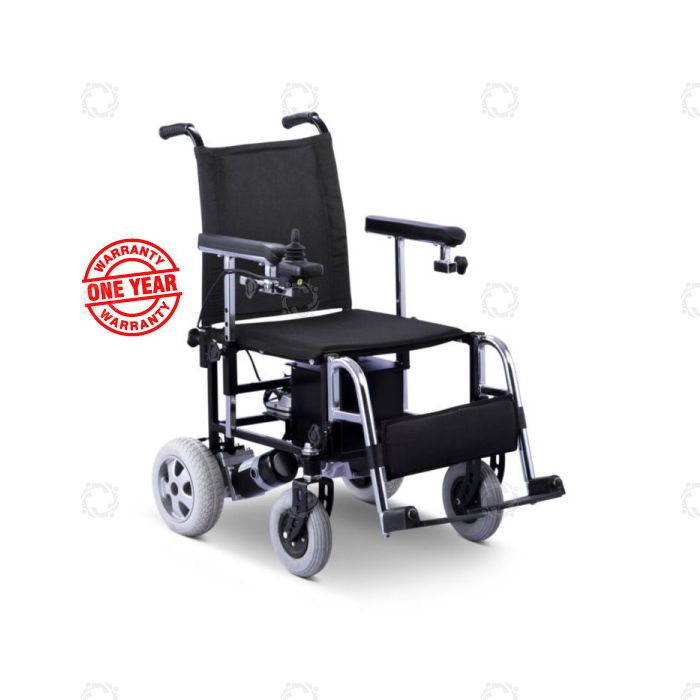

Ostrich Verve (LX 007) Electric Wheel Chair

SPECIFICATION

TECHNICAL SPECIFICATIONS

• - Load capacity: 130 kg /286.5lbs
• - Speed :6.5km/H max /4.038 mi/H max
• - Speed selection: 5 speeds

MOTOR

• - Power: 200-220W
• - Motor speed: 4200-4700 RPM
• - Gear ratio: 32:1
• - Brake: Electromagnetic
• - Drive Range: 10- 15km /Charge

TYRE & BATTERY

• - Tire (Puncture free foam filled rubber tires)
• - Front–Tire diameter X Tire Width: 200 mm X 50 mm /7.87” x 2 “
• - Rear– Tire diameter X Tire Width:250 mm X 72mm /9.84”x2.83”
• - Antitippers–32mm/1.25” solid
• - Battery: 24 V 24 Ah Sealed Maintenance Free VRLA(valve regulated lead acid )
• - Charger :- Input-230/240 V/ AC Single phase
• - Output-24 V/4 A DC

DIMENSIONS

• - Overall length with footrest and tipper wheel (at 90 degree): 1050mm /41”
• - Overallwidth: 590mm /23”
• -  Overall height: 960mm /37.8”
• - Overall height after folding the seat: 610mm /24”
• - Overall weight: 70 kg
• - Ground clearance: 75 mm /3”
• - Turn circle radius: 570mm/22..44”

SEAT

• - Seat depth: 480mm/88”
• - Seat width: 460mm /18.11”
• - Backrest height: 560mm /22.04”
• - Backrest width: 460mm /18.11”
• - Seat base height from ground: 520mm/20.47”
• - Manual seat height adjustment up to 75mm /3”

ARMREST

• - Width: 75mm /3”
• - Height adjustment: 100mm /4”

FOOTREST

• -  Length: 215mm /8.46”
• - Width: 205mm /8.07”
• - Length adjustment: 150mm /5.9”
• - Angle adjustment: Up to 150 degrees
