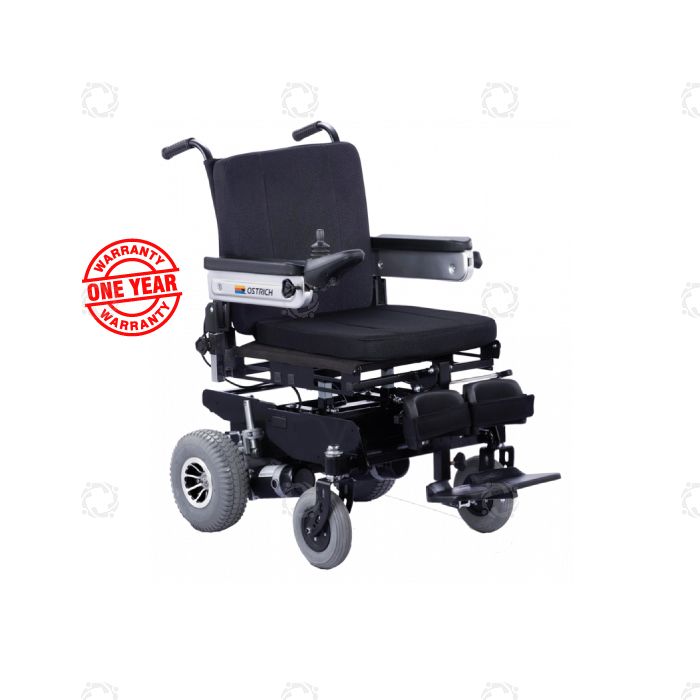

Ostrich Tetra (LX 005) Electric Wheel Chair

SPECIFICATION

TECHNICAL SPECIFICATIONS

• - Power: 200 – 220W
• - Motor speed: 4200-4700 RPM
• - Gear ratio: 32:1
• - Brake: Electromagnetic
• - PermissibleGradeability: 12 0
•  -Drive Range: 12-15 Km / Charge

FEATURES:

• - Mobility cut-off while charging
• - Auto shut-off after 3 minutes
• - Five-speed selector
• - Length adjustable joystick control unit(can be changed from left to right and vice versa)
• - Foldable, height-adjustable and angle adjustable footrest
• - Wide armrest with height and width adjustment
• - Basic seat
• - Removable seat backrest
•  -Removable and width adjustable calf support
• - Reflectors as per standards
• - One year replaceable warranty against manufacturing defects

TYRE & BATTERY

• - Tire (Puncture free foam-filled rubber tires)
• - Front- Tire diameter X Tire Width:: 190 mm X50 mm /7.48 “ X2”
• - Rear- Tire diameter X Tire Width: 260 mm X80mm /10.23” X3.14”
• - Anti tippers- 32mm/1.2” solid
• - Battery: 24 Volt 24 Ah Sealed Maintenance Free VRLA
• - Charger: Input-230/240 Volts AC Single phase, Output-24 Volts-5 Amps DC

DIMENSIONS

• - Overall length with footrest and tipper wheel (at 90 degrees): 1020mm/40.05”
• - Overall width: 580mm/22.82”
• - Overall height: 970mm /38.19”
• - Overall height after folding the seat: 710mm /27.95”
• - Overall weight: 74 Kg/163 lbs
• - Ground clearance: 75mm/3”
• - Turn circle radius:880mm/34.64”

SEAT

• - Seat depth: 420mm /16.53”
• - Seat width: 400mm/15.74”
• - Backrest height: 400mm /15.74”
• - Backrest width: 400mm 15.74”
• - Seat baseheight from ground: 500mm/19.68”
• - Manual seat height adjustment up to 75mm /3”
• - Frame height when seat removed: 350mm/13.77”

ARMREST

• - Width: 50mm/2”
• - Length:360mm/14.17”
• - Height adjustment:180mm/7”
• - Width adjustment: yes

FOOTREST

• - Length: 190mm /7.48”
• - Width: 340mm/13.38”
• - Length adjustment: 100mm/4”
• - Angle adjustment: Up to 90 degrees
