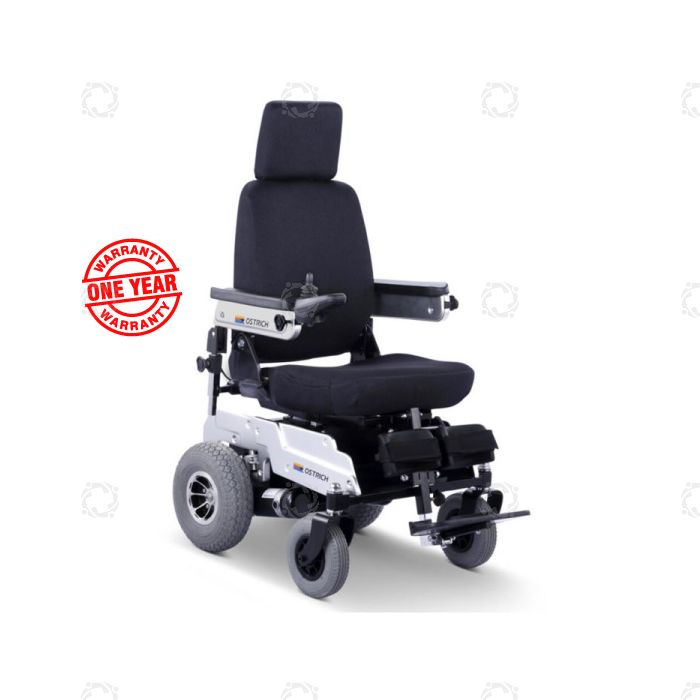

SPECIFICATION
TECHNICAL SPECIFICATIONS
- - Load capacity: 130 Kg /286lbs
- - Speed :9 km/H max
- - Speed selection: 5 speeds
FEATURES:
- - Auto shut-off after 3 minutes
- - Five-speed selector
- - Length adjustable joystick control unit (can be changed from left to right and vice versa)
- - Foldable, height-adjustable and angle adjustable footrest
- - Wide armrest with height and width adjustment
- - Bucket seat with a three-point belt
- - The seat can be folded for transportation
- - The seat reclines 30 degrees in 6 steps
- - Removable and width adjustable calf support
MOTOR
- - Power: 320-340 W
- - Motor speed: 5300 RPMs
- - Gear ratio: 32:1
- - Brake: Electromagnetic
- - Permissible Gradeability: 12 0
- - Drive Range :20-25 km/Charge
TYRE & BATTERY
- Tire (Puncture free foam-filled rubber tires)
- Front–Tire diameter: 220 mm X65 mm /8.66” X 2.55”
- Rear– Tire diameter: 300 mmX100mm /11.81”X4”
- Anti tippers-32 mm/1.2” diameter solid
- Battery:24 Volt 48 Ah Sealed Maintenance Free VRLA
- Charger: Input-230/240 V AC Single phase, Output-24 V-5A DC
- Tire (Puncture free foam-filled rubber tires)
- Front–Tire diameter: 220 mm X65 mm /8.66” X 2.55”
- Rear– Tire diameter: 300 mmX100mm /11.81”X4”
- Anti tippers-32 mm/1.2” diameter solid
- Battery:24 Volt 48 Ah Sealed Maintenance Free VRLA
- Charger: Input-230/240 V AC Single phase, Output-24 V-5A DC
- DIMENSIONS
- - Overall length with footrest and tipper wheel (at 100 degrees): 1050mm
- - Overall width: 650mm
- - Overall height: 1280mm
- - Overall height after folding the seat: 720mm
- - Overall weight: 105 Kg
- - Ground clearance: 4 “
- - Turn circle radius: 860mm
SEAT
- - Seat depth: 500mm/19.68”
- - Seat width: 460mm/18.11”
- - Backrest height: 530mm/20.86”
- - Backrest width: 420mm /16.53”
- - Seat base height from the ground: 580mm/22.83”
- - Manual seat height adjustment up to 75mm
- - Frame height when seat removed: 415mm/16.33”
ARMREST
- - Width: 75mm/3”
- - Length-360mm/14.7
- - Height adjustment: 120mm
- - Width adjustment: 120mm
FOOTREST
- - Length: 190mm
- - Width: 340mm
- - Length adjustment: 135mm
- - Angle adjustment: Up to 180 degrees
