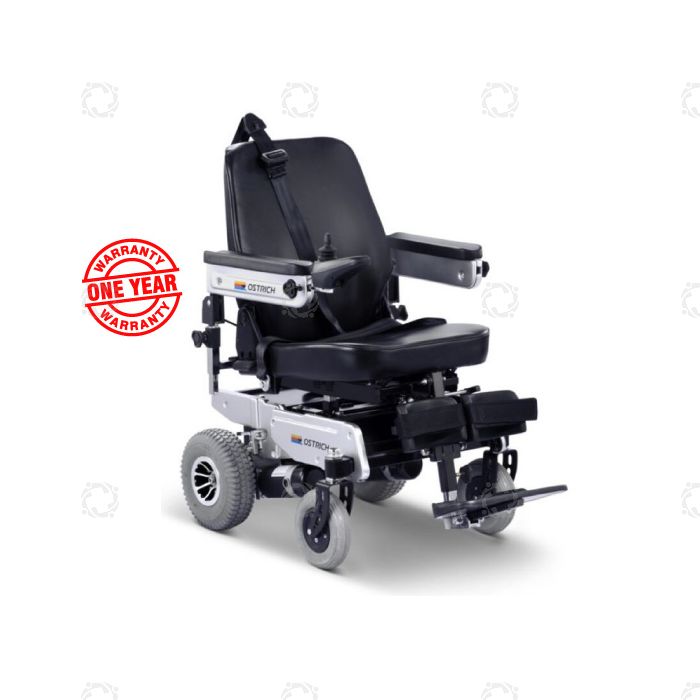

Ostrich Tetra (EX 004) Electric Wheel Chair

SPECIFICATION

TECHNICAL SPECIFICATIONS

• - Load capacity: 130 Kg /286lbs
• - Speed :7.5km/H max
• - Speed selection: 5 speeds

FEATURES

• - Length adjustable joystick control unit(can be changed from left to right and vice versa)
• - Foldable, height adjustable and angle adjustable footrest
• - Wide arm rest with height and width adjustment
• - Bucket seat with three point belt
• - Seat can befolded for transportation
• - Seat reclines 30 degrees in 6 steps
• - Removable and width adjustable calfsupport
•  - Reflectors as per standards
• - One year replaceable warranty against manufacturing defects

MOTOR

• -  Power: 320- 340 W
• - Motor speed: 5300 RPM
• - Gear ratio: 32:1
• - Brake: Electromagnetic
• - Permissible Gradeability: 12 Degrees
• - Drive Range  :10-15 km /charge

TYRE & BATTERY

• - Tire (Puncture free foam filled rubber tires)
• - Front– Tire diameter X Tire Width:190 mm X50 mm /7.48”X2”
• - Rear– Tire diameter X Tire Width: 230 mm X 75mm /9”X3”
• - Anti tippers– 32 mm/1.2” diameter solid
• - Battery: 24 V 24 Ah Sealed Maintenance Free VRLA
• - Charger: Input-230/240 V AC Single phase | Output-24 V-5 A DC

DIMENSIONS

• - Overall length with footrest and tipper wheel (at 90 degrees): 1000mm /39.37”
• - Overall width: 620mm /24.4”
• - Overall height: 1300mm/51.18”
• - Overall height after folding the seat: 760mm /29.92”
• - Overall weight: 84 Kg/185lbs
• - Ground clearance:75mm/3 inches
• - Turn circle radius:560mm/22.04″

SEAT

• - Seat depth: 480mm /18.89”
• - Seat width: 470mm /18.5”
• - Backrest height: 590mm /23.22”
• - Backrest width: 460mm /18.11”
• - Seat baseheight from ground: 520mm /20.47”
• - Manual seat height adjustment up to 75mm /3”
• - Frame height when seat removed: 350mm/13.77”

ARMREST

• - Width: 80mm/3.14”
• - Length :360mm /14.17”
• - Height adjustment: 100mm /4”
• - Width adjustment: yes

FOOTREST

• - Length: 190mm/7.48”
• - Width: 340mm /13.38”
• - Length adjustment: 135mm /5.31”
• - Angle adjustment: Up to 90 degrees
