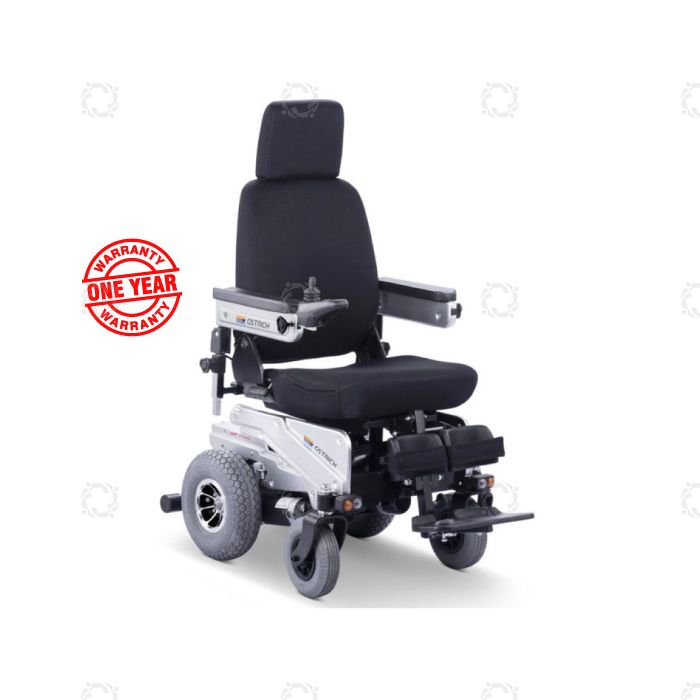

Ostrich Galaxy (AWA 002) Electric Wheel Chair
The store will not work correctly in the case when cookies are disabled.
-
Home
-
Ostrich Galaxy (AWA 002) Electric Wheel Chair
Ostrich Galaxy (AWA 002) Electric Wheel Chair
₹423,150.00
(Incl. GST)
20% OFF
MRP : ₹528,938.00
Features
- - Split Frame Chassis (SFC)
- - Automated Wheelbase Adjuster (AWA) (100mm)
- - Call alarm
- - Fault alarm
- - Reverse alarm (on request)
- - Low voltage alarm
- - Key padlocking
- - Mobility cut-off while charging
- - Auto shut-off after 3 minutes
- - Five speed selector
SPECIFICATION
TECHNICAL SPECIFICATIONS
- - Load capacity: 130 Kg /286lbs
- - Speed:9 km/Hmax
- - Speed selection: 5 speeds
FEATURES:
- - Length adjustable joystick control unit (Can be changed from left to right and vice versa)
- - Bucket seat with headrest and lap belt
- - Seat can be folded for transportation
- - 6 Step Seat reclination to 25 degrees.
- - Seat sliding |seat angle adjustment
- - Removable and width adjustable calf support
- - Reflectors as per standards
- - Head lamp, tail lamp, indicators & hazard warning
- - One year replacement warranty against manufacturing defects.
MOTOR
- - Power: 450W
- - Motor speed: 5300 RPM
- - Gear ratio: 32:1
- - Brake: Electromagnetic
- - PermissibleGradeability: 12 Degrees
- - Drive Range:20-25 km /Charge
TYRE & BATTERY
- - Tire (Puncture free foam-filled rubber tires)
- - Front– Tire diameter: 210mm X65 mm /8.26” X2.55”
- - Rear– Tire diameter: 310 mm X90mm /12” X3.54”
- - Ant-tippers-32mm/1.2” diameter solid
- - Battery: 24 V, 48 Ah Sealed Maintenance Free VRLA.
- - Charger: Input-230/240 V AC Single phase, Output-24 V-5 ADC.
DIMENSIONS
- - Overall length with footrest (at 90 degrees): 980mm-1080mm adjustable /38.58”-42.51”
- - Overall width: 650mm /25.59”
- - Overall height: 1300mm /51.18”
- - Overall height after folding the seat: 750mm/29.52”
- - Overall weight: 116Kg/255 lbs
- - Wheelbase adjustment: 100mm/4”
- - Turn circle radius: 550 mm-650 mm/21.65”-25.59”.
SEAT
- - Seat depth: 480mm /18.89”
- - Seat width: 460mm /18.11”
- - Backrest height(without headrest): 530mm /20.86”
- - Backrest width: 420mm /16.53”
- - Seat base height from the ground: 580mm /22.83”
- - Seat sliding: 180mm/7”
- - Manual Seat Height Adjustment: 75mm/3”
- - Frame Height When Seat Removed: 440mm/17.32”
ARMREST
- - Width: 75mm/3”
- - Length:360mm /14.17”
- - Height adjustment: 100mm/4”
- - Width adjustment: Yes.
FOOTREST
- - Length: 190mm /7.48”
- - Width: 350mm /13.77”
- - Length adjustment: 125mm/4.92”
- - Angle adjustment: Up to 90degrees
Features
- - Split Frame Chassis (SFC)
- - Automated Wheelbase Adjuster (AWA) (100mm)
- - Call alarm
- - Fault alarm
- - Reverse alarm (on request)
- - Low voltage alarm
- - Key padlocking
- - Mobility cut-off while charging
- - Auto shut-off after 3 minutes
- - Five speed selector
SPECIFICATION
TECHNICAL SPECIFICATIONS
- - Load capacity: 130 Kg /286lbs
- - Speed:9 km/Hmax
- - Speed selection: 5 speeds
FEATURES:
- - Length adjustable joystick control unit (Can be changed from left to right and vice versa)
- - Bucket seat with headrest and lap belt
- - Seat can be folded for transportation
- - 6 Step Seat reclination to 25 degrees.
- - Seat sliding |seat angle adjustment
- - Removable and width adjustable calf support
- - Reflectors as per standards
- - Head lamp, tail lamp, indicators & hazard warning
- - One year replacement warranty against manufacturing defects.
MOTOR
- - Power: 450W
- - Motor speed: 5300 RPM
- - Gear ratio: 32:1
- - Brake: Electromagnetic
- - PermissibleGradeability: 12 Degrees
- - Drive Range:20-25 km /Charge
TYRE & BATTERY
- - Tire (Puncture free foam-filled rubber tires)
- - Front– Tire diameter: 210mm X65 mm /8.26” X2.55”
- - Rear– Tire diameter: 310 mm X90mm /12” X3.54”
- - Ant-tippers-32mm/1.2” diameter solid
- - Battery: 24 V, 48 Ah Sealed Maintenance Free VRLA.
- - Charger: Input-230/240 V AC Single phase, Output-24 V-5 ADC.
DIMENSIONS
- - Overall length with footrest (at 90 degrees): 980mm-1080mm adjustable /38.58”-42.51”
- - Overall width: 650mm /25.59”
- - Overall height: 1300mm /51.18”
- - Overall height after folding the seat: 750mm/29.52”
- - Overall weight: 116Kg/255 lbs
- - Wheelbase adjustment: 100mm/4”
- - Turn circle radius: 550 mm-650 mm/21.65”-25.59”.
SEAT
- - Seat depth: 480mm /18.89”
- - Seat width: 460mm /18.11”
- - Backrest height(without headrest): 530mm /20.86”
- - Backrest width: 420mm /16.53”
- - Seat base height from the ground: 580mm /22.83”
- - Seat sliding: 180mm/7”
- - Manual Seat Height Adjustment: 75mm/3”
- - Frame Height When Seat Removed: 440mm/17.32”
ARMREST
- - Width: 75mm/3”
- - Length:360mm /14.17”
- - Height adjustment: 100mm/4”
- - Width adjustment: Yes.
FOOTREST
- - Length: 190mm /7.48”
- - Width: 350mm /13.77”
- - Length adjustment: 125mm/4.92”
- - Angle adjustment: Up to 90degrees
More Information
| SKU |
Kog_Ost-AWA002 |
| Country of Manufacture |
India |
| Usage/Application |
The best choice for basic mobility and portability |
| Manufactured By |
Ostrich Mobility Instruments Pvt.Ltd #235-J/1, 3rd Phase, Bommasandra Industrial Area Hosur Road, Bangalore 560 099, Bengaluru, Karnataka 560099 |
| Warranty |
1 yr |
| Unit of Measure |
Each |
