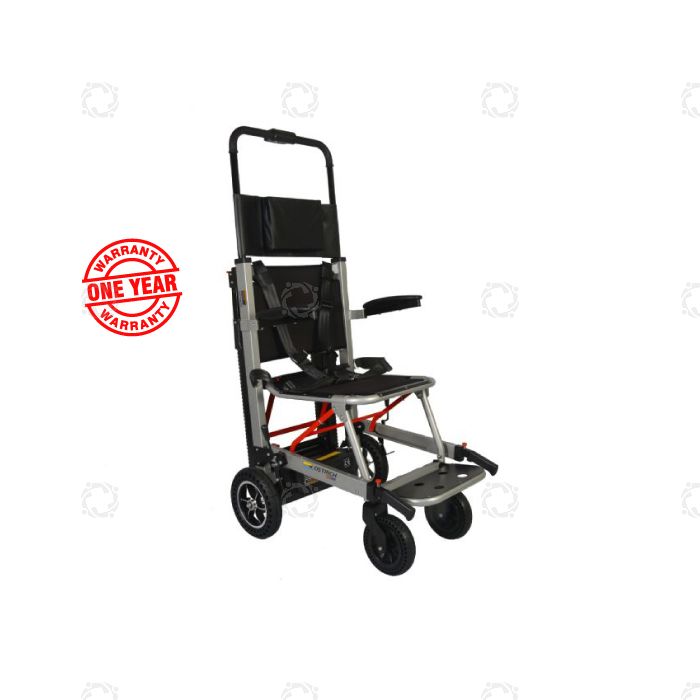

Ostrich Climber (Ex 028) Wheelchair

Specifications

Descriptions

• - Climber EX-Automated Emergency Stair Climbing Chair
• - Moves up and down the stairs easier.
• - It has a seat belt for safety and a cushioned seat for comfort.
• -  It has a pedal/footrest and front castor wheels.

TECHNICAL SPECIFICATIONS:

• - Min. Overall Length (Chair in folded position): 770 mm
• - Max. Overall Length (Chair when fully expanded): 1250 mm
• -  Max. Overall Width: 555 mm
• - Min. Overall Height from the ground: 1000 nun
• - Max. Overall Height from the ground: 1660 mm
• - Ground Clearance: 55 mm
• - Wheelbase: 420 mm
• - Front Wheel Track: 325 mm
• - Rear Wheel Track: 490 mm
• - Caster Wheel Dimensions: 5 inch Diameter X 1 inch Width
• - Rear Wheel Dimensions: 8 inch Diameter X 2 inch Width
• - Stroke Length of Attender Handle: 660 mm
• - Stroke Length of Lifting Rod Handle: 350 mm
• - Seat Base Width: 345 mm
• - Seat Base Depth: 415 mm
• - Seat Base Height from the Ground: 550 mm
• - Backrest Width: 410mm
• - Backrest Depth: 330 mm
• - Headrest Width: 370 mm
• - Headrest Depth: 195 mm
• - Headrest Cushion Width: 260 mm
• - Headrest Cushion
