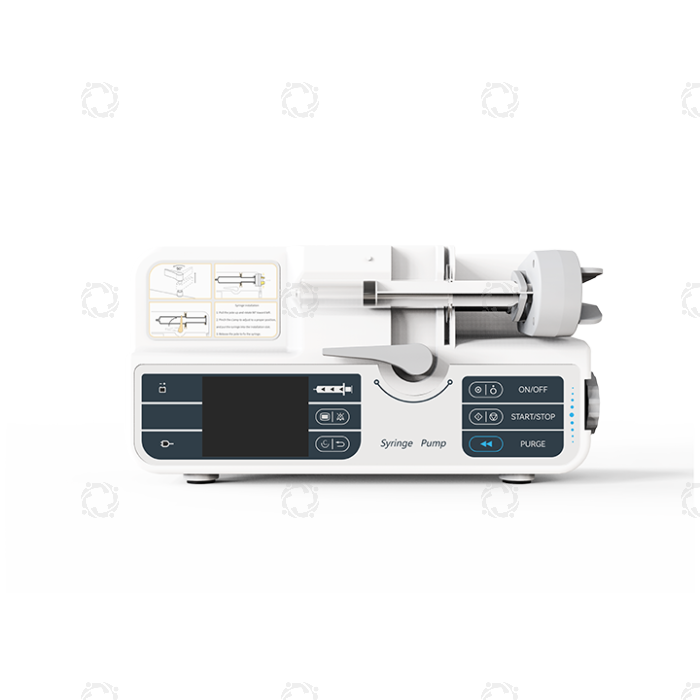

Contec (SP950) Syringe Pump

Specifications:

• The Contec SP950 is a highly intelligent and safe medical syringe pump that offers simple operation and stable performance.
• It features a 2.8" TFT LCD for displaying real-time parameters, and includes adjustable audible and visual alarms.
• The device is compatible with multiple syringe brands, automatically identifies syringe specifications, and allows users to save injection parameters even after shutdown.
• Additionally, it supports various working modes, a drug library for common medications, and can connect to central infusion and management systems for streamlined monitoring.

Performance Specifications:

Syringe Requirements

Infusion Rates

Quick Feed Rates

Additional Features

• Accumulated Volume Display: Shows delivery volume from 0ml to 999.9ml.
• Accuracy: ±3%.

Pressure Range for Occlusion Alarm

• KVO Rate: Adjustable from 0.1ml/h to 5ml/h.

Safety Classification

• Type: Class II medical equipment, type BF, internally powered.

Alarm Functions

• Alerts for:
  • Non-operated state
  • Near empty
  • Syringe empty (enters KVO mode)
  • Syringe fall-off
  • Occlusion
  • Pressure failure
  • Motor failure
  • Low battery
  • Communication issues

Power Specifications

• Power Consumption: 20VA to 30VA; operates for at least 2 hours at infusion rates of 5ml/h or 500ml/h after full charge.
• Power Supply: AC 100-240V, 50/60Hz.
• Battery: Rechargeable lithium, 7.4V, 3500mAh.

Operating Conditions

• Working Environment:
  • Temperature: +5°C to +40°C
  • Atmospheric Pressure: 860hPa to 1060hPa
  • Relative Humidity: 20% to 90%
  • Notes: Avoid strong vibrations and corrosive gases.
• Storage Environment:
  • Temperature: -20°C to +55°C
  • Relative Humidity: ≤90% (no condensation)
  • Notes: Ensure good ventilation and avoid corrosive gases.
