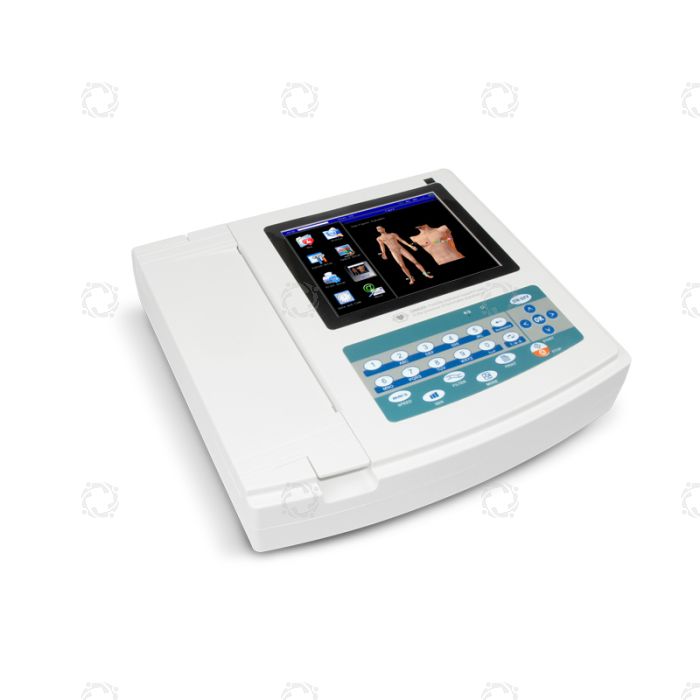

Contec (CMS1200G) 12 Channel ECG Machine

Specifications:

• The Contec ECG1200G is a sophisticated 12-lead electrocardiograph that ensures accurate and efficient cardiac monitoring for hospitals, clinics, and home care.
• It features high-quality signal processing with digital filters to deliver clear ECG waveforms.
• The device supports multiple languages and offers a variety of printing options, including customizable formats and waveform lengths.
• Its auto-analysis capability streamlines the measurement and diagnosis of ECG parameters, reducing the burden on healthcare professionals.
• It also features a memory capacity of 1000 ECG records and impressive battery life, offering up to 10 hours of standby time and more than 3 hours of continuous printing.

Technical Specifications:

• Input mode: Floating and defibrillation protection
  Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
  CMRR: >60dB, >100dB(add filter)
  Time constant:≥ 3.2s
  Patient leak current: <10µA
  Calibration voltage: 1mV
  Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
  Noise level: ≤15µVp-p
  Input circuit current: ≤50nA
  Input impedance: ≥50MΩ
  Sampling accuracy: 12-bit
  Safety classification: Class I, type CF, and defibrillation-proof applied part
  Recording mode: Thermal printing system
  Paper size: 210mm(W)×20m(L)
  Sampling frequency: 1000Hz
  EMG interference filter: 25Hz/35Hz (-3dB)
  Power frequency filter: AC 50Hz/60Hz(-20dB)
  Paper speed:
  Auto: 25, 50mm/s, ±5%
  Rhythm: 25, 50mm/s, ±5%
  Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
  Auto record: Set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
  Rhythm record: Set record according to rhythm record format and mode, automatically measuring and analyzing.
  Manual record: Set record according to record format, manually switching leads.
  Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
  Power supply:
  AC: 100V~240V(50/60Hz)
  DC: 14.8V/3500mAh rechargeable lithium battery
  Fuse specification: Two AC time lag fuses (φ5×20mm), T1.6AL250V
  Waterproof degree: IPX0
  Working mode: Continuous working
