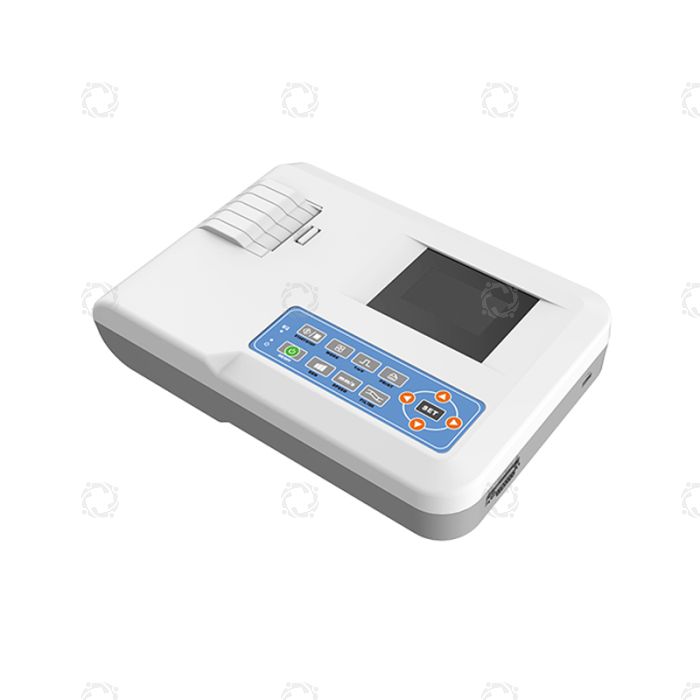

Contec (CMS100G) Single Channel ECG Machine

Specifications:

• The CMS100 ECG machine is a lightweight and portable device designed for accurate heart monitoring, featuring single-channel recording and a clear LCD display for real-time readings.
• It includes data storage, USB connectivity for easy transfer, and a rechargeable battery for versatility.
• With adjustable sensitivity and low noise levels, it ensures accurate readings while prioritizing patient safety.
• And it operates within a frequency response of 0.05 Hz to 150 Hz, making it well-suited for both clinical and emergency settings.
• The CMS100 combines practical features with user-friendly design, making it well-suited for both clinical and emergency settings.

Performance Specifications:

Input mode: Floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Calibration voltage: 1mV
Sensitivity: 5, 10, 20 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: ≤15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Safety classification: Class I, type CF and defibrillation-proof applied part
Recording mode: Thermal printing system
Paper size: 50mm(W)×20m(L)
Sampling frequency: 800Hz
EMG interference filter: 35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)
Paper speed: 25, 50mm/s, ±5%
Power supply:
AC: 100V~240V(50/60Hz)
DC: 7.4V/2000mAh rechargeable lithium battery
Fuse specification: Two AC time lag fuse(φ5×20mm), T1.6AL250V
Waterproof degree: IPX0
Working mode: Continuous working
