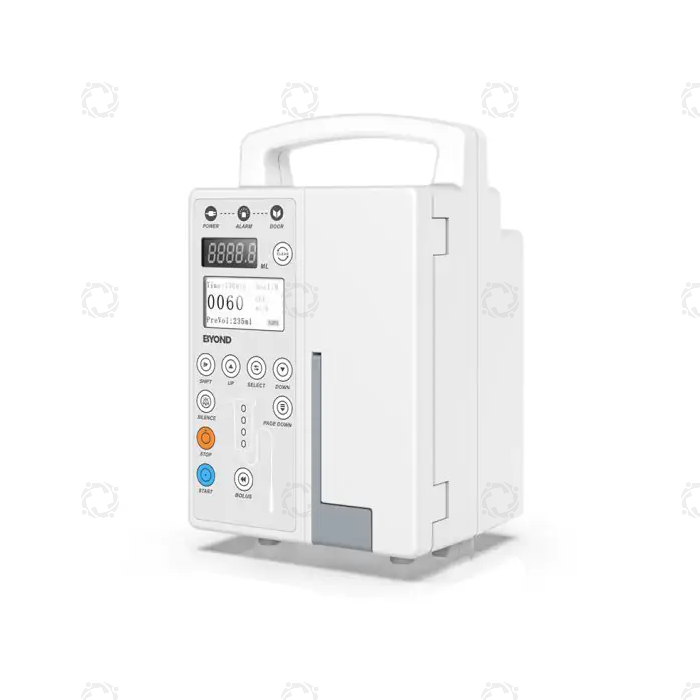

BYOND (BYZ820) Syringe Pump
Drug Licence Required
Drug Licence Required
- HD LCD display featuring high-capacity text and a user-friendly interface that dynamically shows the operational status.
- Audible and visual alarms for occlusion, empty conditions, low battery, end of infusion, open door, incorrect settings,etc.
- Compatible with any brands of infusion sets after correct calibration.
- The device allows easy switching between ml/h and drops/min modes.
- It features three levels of occlusion: high, medium, and low.
- It includes KVO and bolus functions, as well as a bubble detector and pressure sensor for enhanced safety.
Delivery within 2 to 7 Working Days
Manufacture/Marketer:
Hunan Beyond Medical Technology Co., Ltd.
Door Step Delivery
Quick and Secure
No Hidden Charges
Pay only what's shown
18K Pincodes Served
With Trust & Reliability
Technical Specifications:
|
Rate
|
1ml/h ~ 1,200ml/h
|
|
Flow Rate Accuracy
|
Within ±5% (after correct calibration)
|
|
Mechanical precision
|
Within ±2%
|
|
Purge Rate
|
100ml/h ~ 1,000ml/h (100 ml/h step)
|
|
Infusion Volume
|
1ml ~ 9999ml
|
|
Total Infusion Volume
|
0.1ml ~ 9999.9ml
|
|
KVO rate
|
1ml/h ~ 5 ml/h (1ml/h step)
|
|
Occlusion
|
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
|
|
Unique audible and visible alarm
|
Human voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
|
|
Power Source
|
AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
|
|
Bubble detector
|
Ultrasonic wave detector; detection sensitivity ≥25μL
|
|
Fuse
|
F1AL/250V, 2 pc inside
|
|
Power Consumption
|
18VA
|
|
Operating Condition
|
Ambient temperature: +5℃ ~ +40℃;
Relative humidity: 20 ~ 90%
Atmospheric pressure: 86.0kpa ~ 106.0kpa
|
|
Transport & Storage Condition
|
Ambient temperature:-30℃ ~ +55℃
Relative humidity: ≤95%
|
|
Equipment Classification
|
Class II, internal power supply, Type CF
|
|
IP Classification
|
IPX4
|
|
Dimension
|
153mm (L) ×162mm (W) × 227mm (H)
|
|
Weight
|
1.8kg (net weight)
|
No content available for this section.
No content available for this section.
No content available for this section.
No content available for this section.
| SKU |
VD_BYZ820 |
| Country of Manufacture |
China |
| Request for Quote |
Yes |
| Package Dimension (LxBxH in cms) |
28 X 20 X 11.2 |
| Unit of Measure |
Each |
| Manufacturer Address |
Hunan Beyond Medical Technology Co., Ltd. |
| Return/Buy Back policy |
Against any manufacturing defect. |
| Prescription Required |
No |
| Brand |
BYOND |
| Seller |
VD Bio Medisystems |
