12.1” high-resolution colour
TFT Display
Light Weight and Portable
Ideal for use in Post OP, Casualty and as Bedside Monitor
Huge Storage Facility for trend and Data of more than 720 hrs
Audible and Visual alarm with adjustable limits
Different interface to suit different clinical situations
Built-in Li-ion Battery

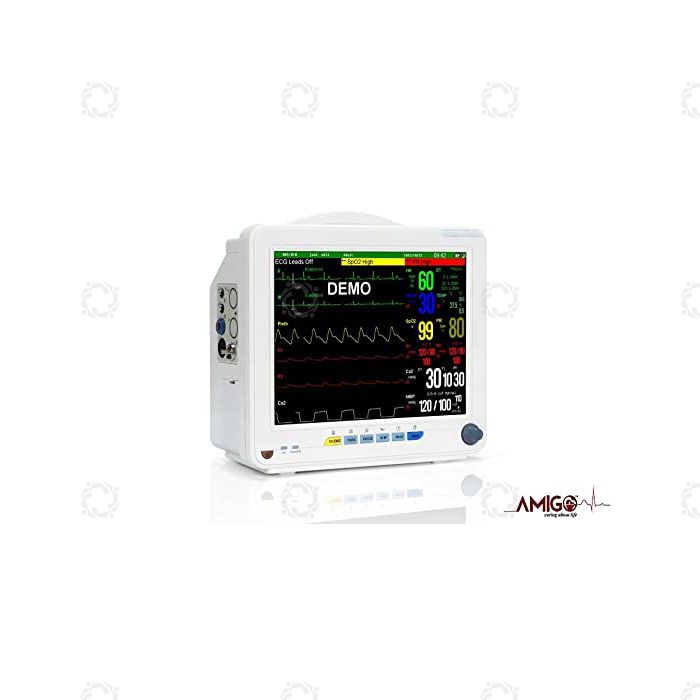

Amigo Patient Monitor- A9000
12.1” High-resolution Color
TFT Display
Light Weight and Portable
Ideal for use in Post OP, Casualty and as Bedside Monitor
Huge Storage Facility for trend and Data of more than 720 hrs
Audible and Visual alarm with adjustable limits
Different interface to suit different clinical situations
Built-in Li-ion Battery
Upgradable to EtCO2 and IBP
Optional:
EtCO2, IBP, Masimo SPO2, Thermal Printer, Moving Cart / Wall Mount, Wireless network 12 V power supply, high energy battery
Specification:
ECG : Lead Mode : 1,11,111, AVR,aVL,aVF,
V Gain:0.25,0.50,1,2
Sweep Speed: 6.25, 12.5,25,and 50 mm/sec
HR Range:15-300 BPM
Calibration:+/-1mV Accuracy +/- 3 BPM
Measuremtn Range:0-50 Degree
Resolution : 0.1 Degree
Display : T1,T2,
Delta T Unit: Degree or Farenheat
Selectable Respiration Principle: RA-LL
Impeadence Measurement Range: 0-156BPM
Accuracy: +/-3 BPM Resolution : 2BPM
SPO2 Display : Waveform and %
Value Measurement Range: 0-100%
Accuracy: 1% PR Range : 15-300
BPM Accuracy: +/-3BPM
Resolution : 1BPM
EtCO2 ( Plug and Play ) Measurement Types: Side Stream/Micro Stream/Main Stream
